Wear Resistant Square Ceramic Lining Liner

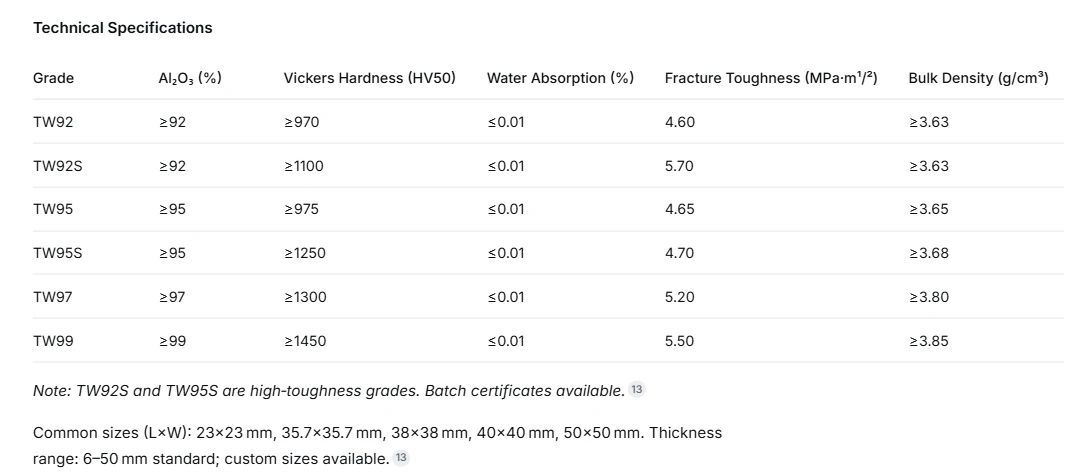

A square ceramic liner is defined by four key properties:

Hardness: Mohs 9, resisting scratching from quartz and most ores. Steel is only Mohs 5–6.

Density: Bulk density ≥3.63 g/cm³, water absorption ≤0.01% – no liquid penetration, no freeze-thaw damage.

Impact resistance: Fracture toughness up to 5.70 MPa·m¹/² (TW92S grade), reducing cracking under heavy load.

Shape versatility: Available as plain cubes, interlocking blocks, tapered cubes, and designs with spherical bulges or holes.

Material, Structure and Manufacturing

A square ceramic liner is made from high-purity calcined alumina powder. Grades range from 92% to 99% Al₂O₃, with higher purity providing greater wear resistance and lower contamination risk. The powder is wet-milled for uniform particle size, then spray-dried. Forming uses either dry pressing or cold isostatic pressing (CIP) depending on tile size. CIP ensures uniform density throughout the cube, eliminating weak spots that cause uneven wear. After forming, green bodies are dried slowly to avoid micro-cracks, then sintered in a tunnel kiln at 1500–1550 °C. During sintering, alumina grains fuse, achieving bulk density above 3.63 g/cm³ and water absorption below 0.01%. Each batch undergoes strict quality control: chemical composition verified by XRF, hardness tested per ASTM C1327, and dimensional checks with calibrated gauges. Tiles with chips, cracks, or out-of-tolerance dimensions are rejected.

What sets Tecera apart is the use of isostatic pressing for all cubes larger than 50 mm, plus over 2,000 custom shapes – tapered cubes, interlocking blocks, cubes with spherical bulges, and fan-shaped designs for curved surfaces.

Product Advantages

Because a square ceramic liner is fully densified with water absorption ≤0.01%, no process liquid penetrates the ceramic – acidic slurries cannot weaken it, and freezing climates cannot crack it. Because its Mohs hardness is 9, it resists scratching from quartz-rich ore and hard particles, unlike steel which erodes rapidly. Because Tecera offers interlocking and tapered designs, the liner eliminates straight-line gaps that become erosion channels – a simple change that can double or triple service life in high-velocity applications. Alumina mosaic liners extend service life by 2–3 times compared with conventional steel or polymer wear liners, directly improving uptime and reducing operating costs.

Application Scenarios

Mining: Chute liners, cyclone feed boxes, conveyor transfer points. A copper mine in South Australia processed ore at 2,200 tonnes per hour through a high-velocity underflow transfer chute. Previous liners wore through within weeks. After installing square ceramic liners, service life extended to over 12 months.

Power generation: Coal pulveriser feed chutes, ash handling hoppers. A thermal power plant's coal conveying system required maintenance 2–3 times per month. After installing alumina ceramic liners, maintenance dropped to once per quarter and operating costs fell by 40%.

Cement: Raw meal bins, clinker chutes, mill discharge pipes. A Brazilian cement plant saw clinker chute life extend from 8 months to over 28 months.-

Steel mills: Sinter plant chutes, coke hoppers, blast furnace feed bins. Square ceramic liners withstand high temperature (up to 400 °C) and abrasive sinter dust.

Ordering

Tecera supplies 92%, 95%, 97%, 99%, and ZTA square ceramic liners in thicknesses from 6 mm to 50 mm, in plain, interlocking, and custom shapes. Free samples for destructive testing. Lead time 2-3 weeks standard, 4-6 weeks custom. Global shipping with export-grade packaging. Respond within two business days.
